Lecture overview:

• Total time: ~55 minutes
• Prerequisites: L29 (GUIs in Java, event loop), L30 (MVVM, property binding), L12 (Domain Modeling)
• Connects to: L32 (Async/CompletableFuture), L33 (Event-Driven Architecture), GA1 (BackgroundTaskRunner)

Structure (~22 slides):

• Arc 1: Why Concurrency? + Week Roadmap (~10 min) — motivating scenario, three-lecture overview, concurrency vs parallelism
• Arc 2: Threads (~12 min) — creating threads, thread pools, interrupts
• Arc 3: The Problem — Shared Mutable State (~12 min) — race conditions, atomicity, Java Memory Model
• Arc 4: Solving It — Synchronization (~12 min) — synchronized, fine-grained locking, concurrent collections
• Arc 5: Deadlock (~8 min) — deadlock scenario, Coffman conditions, prevention
• Arc 6: Wrap-Up (~5 min) — comprehension check, takeaways, looking ahead

Running example: SceneItAll — the IoT/smarthome platform students know from L2, L13, L29, L30, Labs 11-12. IoT is a natural fit for concurrency: many devices, many users, many network calls, real-time state that must stay consistent.

Transition: Let's start with the learning objectives...

CS 3100: Program Design and Implementation II

Lecture 31: Concurrency I — Threads and Synchronization

©2026 Jonathan Bell & Ellen Spertus, CC-BY-SA

Context from previous lectures:

• L29: Built a SceneItAll area dashboard — introduced the event loop. "Long handlers freeze the UI."
• L30: MVVM, property binding, ObservableList, ViewModel testing. Students are deep in the SceneItAll domain.
• L12: Domain modeling — competing actions on the same domain objects. Today we see the technical version of that problem.
• Today: why concurrency matters, how threads work, what goes wrong with shared state, and how to fix it.

Transition: Here's what you'll be able to do after today...

Learning Objectives

After this lecture, you will be able to:

1. Describe threads as a concurrency mechanism
2. Recognize the need for synchronization and atomicity
3. Utilize locks and concurrent collections to implement basic thread-safe code
4. Understand deadlocks and race conditions

Time allocation:

• Objective 1: Threads and thread pools (~12 min)
• Objective 2: Shared mutable state, race conditions, atomicity (~12 min)
• Objective 3: synchronized, concurrent collections (~12 min)
• Objective 4: Deadlock scenarios and prevention (~8 min)
• Wrap-up: comprehension check, takeaways (~5 min)

Connection to GA1: The GA1 handout provides BackgroundTaskRunner — students need to understand what it does internally. Today's concepts are the foundation.

Transition: Let me set the scene...

50 Devices, 3 Users, 1 Hub

SceneItAll's hub manages 50 smart devices — lights, fans, shades, thermostats — across a whole house.

Three family members walk in and activate scenes simultaneously from different rooms:

User	Scene	Devices	Sequential time
Alice	"Evening"	15 devices (dim lights, close shades)	~5 sec
Bob	"Movie Night"	8 devices (lights off, shades closed)	~3 sec
Carol	"Study"	6 devices (desk lamp on, overhead dim)	~2 sec

Sequential: 10 seconds of delay — Alice waits, Bob waits longer, Carol waits longest.

Concurrent: All three scenes activate within ~5 seconds.

Remember L29: "long handlers freeze the UI." Same problem — now the hub is the UI.

To be clear, we're not talking about JavaFX scenes.

→ This week is about concurrency...

The Concurrency Roadmap: This Week and GA1

Lecture	Topic	The question it answers
L31 (Mon)	Threads, shared state, synchronization, deadlock	"Why does my GUI freeze when I load data?"
L32 (Wed)	Async programming, CompletableFuture, Platform.runLater()	"How do I load data in the background and update my GUI when it's ready?"
L33 (Thu)	Event-driven architecture, consistency, resilience	"What happens when the service I depend on is slow or down?"

What you'll use in GA1: When CookYourBooks loads recipes from the repository, that's I/O. If you do it on the main thread, your GUI freezes. The GA1 handout provides BackgroundTaskRunner — it wraps threads and FX-thread callbacks into run(callable, onSuccess, onFailure). You don't write threading boilerplate, but you must understand what it does internally (your TA will ask).

The three-lecture arc: L31 builds the mental model (threads, shared state, locks). L32 gives the practical tool (CompletableFuture, Platform.runLater). L33 zooms out to system-level coordination (events, consistency).

BackgroundTaskRunner: This is provided in the GA1 handout code. It wraps javafx.concurrent.Task with daemon threads and FX-thread callbacks. Students call BackgroundTaskRunner.run(() -> loadData(), data -> updateUI(data), ex -> showError(ex)). They don't write the threading code, but TAs will ask what happens under the hood during code walks.

GA1 connection: The concepts from this week directly address the "Handling asynchronous operations in a GUI context" learning outcome in GA1.

Transition: Before we dive in, let's clarify two terms people often confuse...

Poll: Do multiple apps on your laptop take turns or run simultaneously?

A. they take turns

B. they run at the same time

C. some of both

D. no idea

Text espertus to 22333 if the
URL isn't working for you.

https://pollev.com/espertus

For example, you might have Spotify, VSCode, and Discord all open at once.

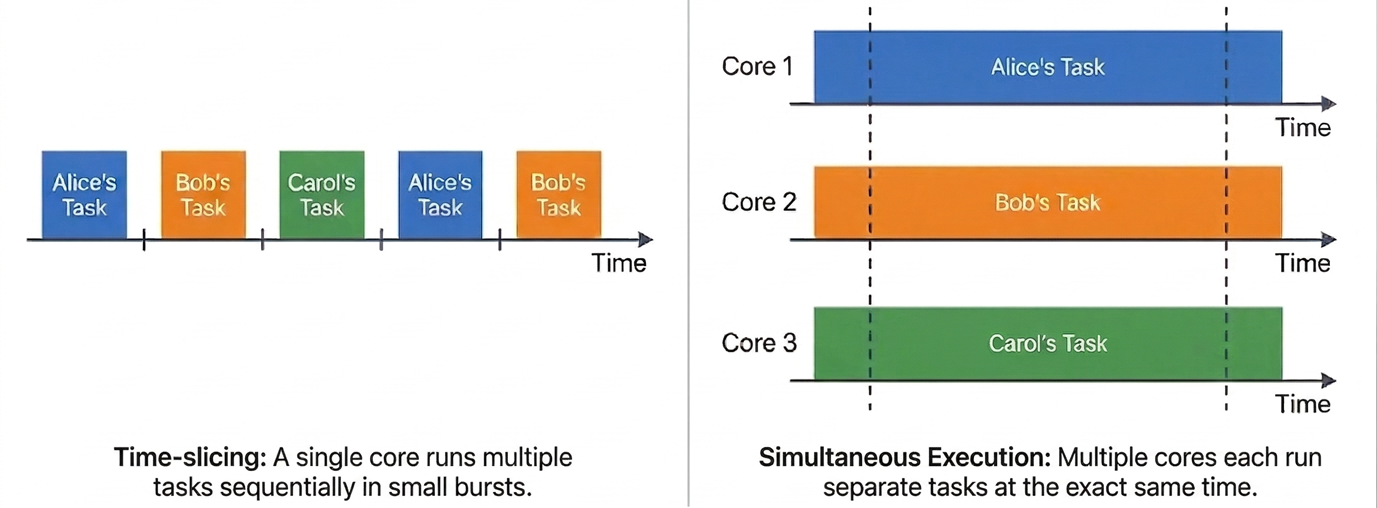

Concurrency with and without Parallelism

Concurrency: a program or system with multiple overlapping tasks

• Time-slicing: a single core rapidly switching among tasks
• Parallelism: multiple cores simultaneously executing different tasks

Your laptop has ~8 cores but hundreds of threads running right now. You get both: parallelism across cores, concurrency within each core. The bugs we'll see today apply to all of it.

Key distinction: Concurrency is about structure — designing your program to handle multiple things. Parallelism is about execution — actually running things at the same time on multiple cores.

The real world is row 3. A modern laptop has 8-16 cores, but the OS is running hundreds of threads. Each core time-slices between many threads. You get parallelism (multiple cores) AND concurrency (many threads per core). This is why concurrency bugs are so hard to reproduce — the exact interleaving depends on how the OS schedules threads across cores, which varies every time.

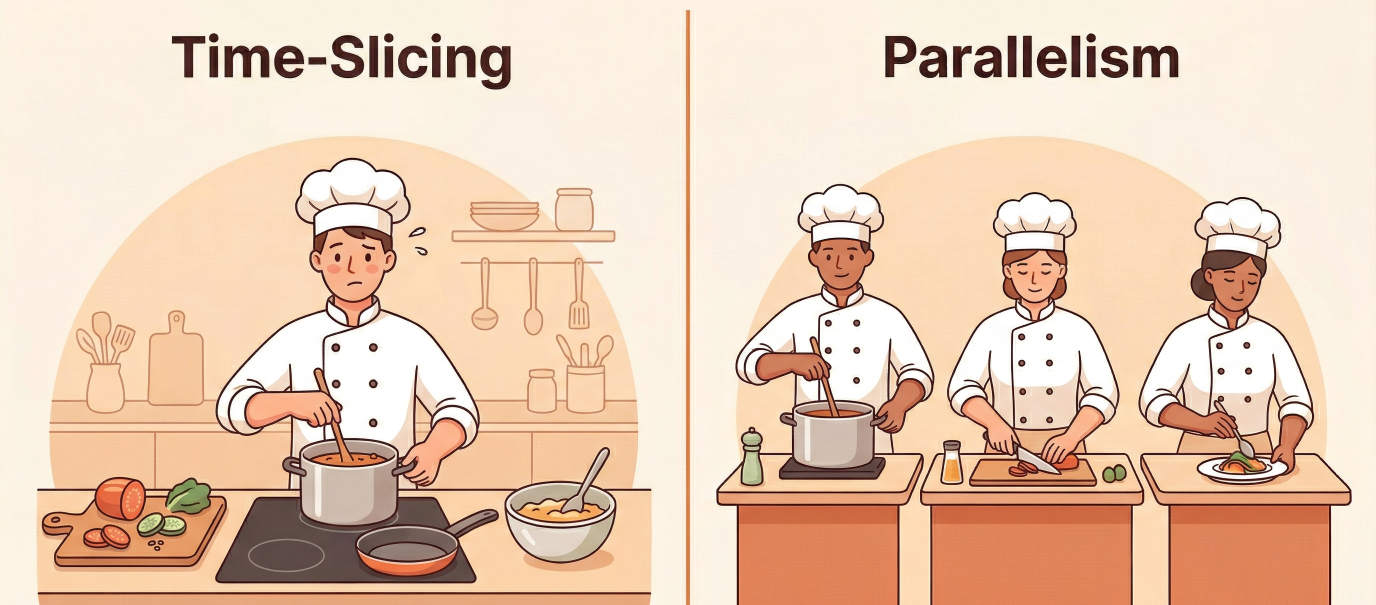

Analogy: A single chef (1 core) can manage 3 dishes concurrently by switching between them. Three chefs (3 cores) can work on all three dishes in parallel. A real restaurant kitchen (8 cores, 50 orders) has both — chefs switch between dishes AND work in parallel. If two chefs grab the same pan, you have a problem regardless.

Transition: Let's look at the mechanism Java gives us for concurrency...

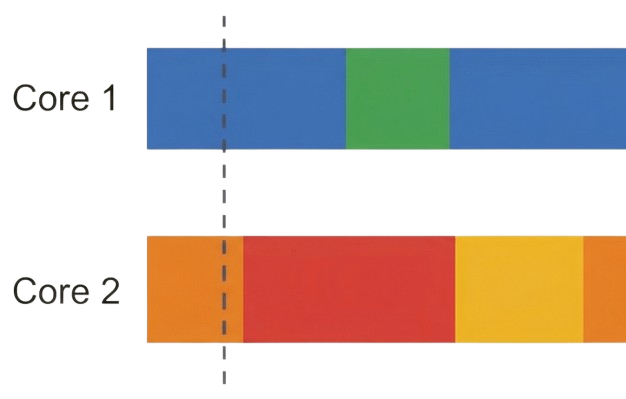

Time-Slicing vs. Parallelism

Multiple cores

Modern processors have multiple "cores" (mini-processors), each of which can run a different task, giving true parallelism.

Both parallelism and time-slicing are used.

Left image is licensed from freepik and does not require attribution.

Poll: Parallelism vs. Time-Slicing

Do you use parallelism or time-slicing for taking multiple courses in a semester?

A. parallelism

B. time-slicing

C. both

D. neither

E. not sure

Text espertus to 22333 if the
URL isn't working for you.

https://pollev.com/espertus

A Thread Is an Independent Path of Execution

Every Java program has a main thread. You can create additional threads that run concurrently. Threads share the code and heap (data memory) but have their own stack (call history) and instruction pointers.

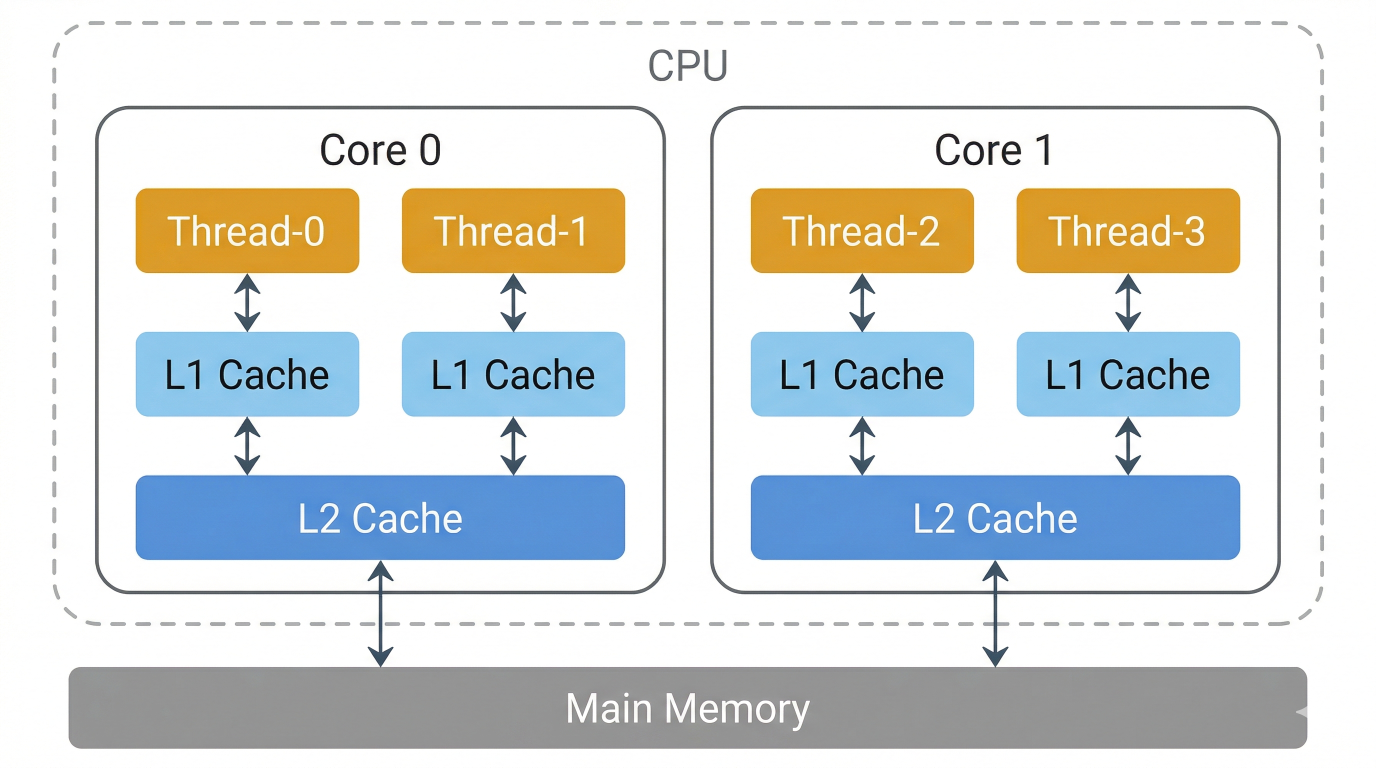

Shared heap, separate stacks: This is the key mental model. The heap is where objects live — Device objects, Scene objects, the ConcurrentHashMap of registered devices. Every thread can see and modify these. The stack is local — each thread's method call frames, local variables, parameters. This is private to each thread.

The shared heap is what makes concurrency dangerous. If threads only used their own stacks, there would be no concurrency bugs. The problems start when two threads read and write the same heap objects.

Transition: Let's see the three ways to create threads in Java...

Poll: Do Java threads run in parallel (at the same time)?

If there are ten concurrent threads, do they run in parallel (on 10 different cores) or using time-slicing on a single core?

A. they run on 10 different cores

B. they run on a single core

C. it depends

Text espertus to 22333 if the
URL isn't working for you.

https://pollev.com/espertus

Counter Example A

public class Counter extends Thread {
  private final String name;
  private int count;
  private final int limit;

  public Counter(String name, int limit) {
    this.name = name;
    count = 0;
    this.limit = limit;
  }

  @Override
  public void run() {
    while (count < limit) {
      count++;
      System.out.println(name + ": " + count);
    }
  }

  public static void main(String[] args) {
    Counter counter1 = new Counter("Counter A", 5);
    counter1.start();
  }
}

Counter A: 1
Counter A: 2
Counter A: 3
Counter A: 4
Counter A: 5

Step	Main thread	counter1 thread
1	new Counter("A", 5)
2	counter1.start() →	spawned
3	(continues)	run() — counts 1→5

https://github.com/cs3100-spertus-s26/concurrency-examples/blob/counter-a/app/src/main/java/concurrency/Counter.java

Counter Example B

public class Counter extends Thread {
  private final String name;
  private int count;
  private final int limit;

  public Counter(String name, int limit) { ... }

  private static void printThread(String msg) {
    System.out.println(String.format("thread %s: %s",
        Thread.currentThread().getName(), msg));
  }

  @Override
  public void run() {
    while (count < limit) {
      count++;
      printThread(name + ": " + count);
    }
  }

  public static void main(String[] args) {
    printThread("At start of main()");
    Counter counter1 = new Counter("Counter A", 5);
    counter1.start();
  }
}

thread main: At start of main()
thread Thread-0: Counter A: 1
thread Thread-0: Counter A: 2
thread Thread-0: Counter A: 3
thread Thread-0: Counter A: 4
thread Thread-0: Counter A: 5

https://github.com/cs3100-spertus-s26/concurrency-examples/blob/counter-b/app/src/main/java/concurrency/Counter.java

Poll: What could be the last line printed?

@Override
public void run() {
  while (count < limit) {
    count++;
    printThread(name + ": " + count);
  }
}

public static void main(String[] args) {
  printThread("At start of main()");
  Counter counter1 = new Counter("Counter A", 5);
  counter1.start();
  printThread("At end of main()");
}

A. thread main: At end of main()

B. thread Thread-0: At end of main()

C. thread Thread-0: Counter A: 4

D. thread Thread-0: Counter A: 5

E. I have no idea

Text espertus to 22333 if the
URL isn't working for you.

https://pollev.com/espertus

• multiple answer poll
• counter1c

Counter Example C

public class Counter extends Thread {
  private final String name;
  private int count;
  private final int limit;

  public Counter(String name, int limit) { ... }

  private static void printThread(String msg) {
    System.out.println(String.format("thread %s: %s",
        Thread.currentThread().getName(), msg));
  }

  @Override
  public void run() {
    while (count < limit) {
      count++;
      printThread(name + ": " + count);
    }
  }

  public static void main(String[] args) {
    printThread("At start of main()");
    Counter counter1 = new Counter("Counter A", 3);
    counter1.start();
    printThread("At end of main()");
  }
}

thread main: At start of main()
thread main: At end of main()
thread Thread-0: Counter A: 1
thread Thread-0: Counter A: 2
thread Thread-0: Counter A: 3

thread main: At start of main()
thread Thread-0: Counter A: 1
thread main: At end of main()
thread Thread-0: Counter A: 2
thread Thread-0: Counter A: 3

thread main: At start of main()
thread Thread-0: Counter A: 1
thread Thread-0: Counter A: 2
thread main: At end of main()
thread Thread-0: Counter A: 3

thread main: At start of main()
thread Thread-0: Counter A: 1
thread Thread-0: Counter A: 2
thread Thread-0: Counter A: 3
thread main: At end of main()

The output is nondeterministic.

https://github.com/cs3100-spertus-s26/concurrency-examples/blob/counter-c/app/src/main/java/concurrency/Counter.java

The Big Picture

• Java programs can have multiple threads.

• Code in different threads can run concurrently, which can be

  • in parallel (simultaneously) on different cores
  • using time-slicing (interleaving) on a single core

• This can lead to nondeterministic (unpredictable) behavior.

• Why is nondeterminism a problem?

Complex Number Example A

public class ComplexNumber {
  private int real;
  private int imaginary;

  public ComplexNumber(int real, int imaginary) {
    this.real = real;
    this.imaginary = imaginary;
  }

  public void negate() {
    printThread("At start of negate()");
    real = -real;
    imaginary = -imaginary;
    printThread("At end of negate()");
  }

  @Override
  public String toString() {
    return String.format("%d + %di", real, imaginary);
  }

  public static void main(String[] args) {
      ComplexNumber c = new ComplexNumber(1, 1);
      printThread("Original: " + c);
      c.negate();
      printThread("Negated: " + c);
  }
}

thread main: Original: 1 + 1i
thread main: At start of negate()
thread main: At end of negate()
thread main: Negated: -1 + -1i

https://github.com/cs3100-spertus-s26/concurrency-examples/blob/complex-a/app/src/main/java/concurrency/ComplexNumber.java

• This is an ordinary single-threaded program. → Let's make it into a multi-threaded program

Complex Number Example B

public class ComplexNumber {
  private int real;
  private int imaginary;

  public ComplexNumber(int real, int imaginary) { .. }

  public void negate() {
    printThread("At start of negate()");
    real = -real;
    imaginary = -imaginary;
    printThread("At end of negate()");
  }

  @Override
  public String toString() {
    return String.format("%d + %di", real, imaginary);
  }

  public static void main(String[] args) {
    ComplexNumber c = new ComplexNumber(1, 1);
    printThread("Original: " + c);
    new Thread(c::negate).start(); // easy way to create thread
    printThread("Negated: " + c);
  }
}

Poll: What can be printed at the end of main() for the negated value?

Poll: What can be printed for the negated value?

public static void main(String[] args) {
  ComplexNumber c = new ComplexNumber(1, 1);
  printThread("Original: " + c);
  new Thread(c::negate).start();
  printThread("Negated: " + c);
}

A. 1 + 1i

B. -1 + 1i

C. 1 + -1i

D. -1 + -1i

E. no idea

Text espertus to 22333 if the
URL isn't working for you.

https://pollev.com/espertus

https://github.com/cs3100-spertus-s26/concurrency-examples/blob/complex-b/app/src/main/java/concurrency/ComplexNumber.java

• multiple answer

Possible Outputs: Complex Number Example B

thread main: Original: 1 + 1i
thread main: Negated: 1 + 1i
thread Thread-0: At start of negate()
thread Thread-0: At end of negate()

thread main: Original: 1 + 1i
thread Thread-0: At start of negate()
thread main: Negated: 1 + 1i
thread Thread-0: At end of negate()

thread main: Original: 1 + 1i
thread Thread-0: At start of negate()
thread Thread-0: At end of negate()
thread main: Negated: -1 + -1i

thread main: Original: 1 + 1i
thread Thread-0: At start of negate()
thread main: Negated: -1 + 1i
thread Thread-0: At end of negate()

This program is not only nondeterministic but has a race condition:
We can get a wrong result due to timing.

There's an additional problem I'm not revealing yet.

The 4th output is a torn read — main reads real after it's been negated but imaginary before, producing -1 + 1i. This is the scariest one: not only is neither scene applied, the object is in a state that was never valid.

Problem 1: Order of Execution

public static void main(String[] args) {
    ComplexNumber c = new ComplexNumber(1, 1);
    printThread("Original: " + c);
    new Thread(c::negate).start();
    printThread("Negated: " + c);
}

No guarantee Thread-0 runs before main prints "Negated".

main prints "Negated" before Thread-0 has done anything. The result looks like negate() had no effect — because it hasn't run yet.

Problem 2: Cached Values

public static void main(String[] args) {
    ComplexNumber c = new ComplexNumber(1, 1);
    printThread("Original: " + c);
    new Thread(c::negate).start();
    printThread("Negated: " + c);
}

Even if Thread-0 completes before main resumes, main's cache may hold stale values.

Even in the "lucky" ordering where Thread-0 finishes before main prints, main may still see the old values. Each CPU core has its own cache. Without a happens-before relationship (volatile, synchronized, or join()), the JVM makes no guarantee that Thread-0's writes are visible to main.

Transition: So how do we fix this?

Java Memory Model

Hard Things in Computer Science

"There are only two hard things in Computer Science: cache invalidation and naming things" — Phil Karlton

"There are two hard things in computer science: cache invalidation, naming things, and off-by-one errors." — Jeff Atwood

Two Users Activate Different Scenes at the Same Time

Alice activates "Party" (lights to 10%, music loud). Bob activates "Study" (lights to 100%, music off). Same room, same instant. This code handles it:

public class SceneService {
    public boolean activateScene(Scene scene, Area room) {
        for (Device device : room.getDevices()) {
            DeviceState targetState = scene.getTargetState(device);
            if (targetState != null) {
                device.setState(targetState);
            }
        }
        return true;
    }
}

Looks correct. What could go wrong?

Pause here and ask students. The code is simple — iterate through devices, set each one's state. What could possibly go wrong? Let them think about it before showing the next slide.

Transition: Let's trace what happens when two threads run this simultaneously...

Poll: What should happen when users make conflicting requests?

What if these requests are made at the same time by different people:

• Activate Party scene (lights to 10%, music loud)
• Activate Study scene (lights to 100%, music off) What should be permissible outcomes?

A. The slightly earlier scene is activated

B. The slightly later scene is activated

C. Either of the above

D. A mixture occurs

E. No changes are made

Text espertus to 22333 if the
URL isn't working for you.

https://pollev.com/espertus

• multiple select

The Interleaving (1/3): Alice Goes First

Alice sets the lights to 10%. So far so good...

Pause here. "Nothing wrong yet. Alice sets lights to 10%. What happens if Bob arrives right now?"

The Interleaving (2/3): Bob Overwrites Alice

Bob overwrites Alice's light setting. The lights are now 100% — Study mode wins on lights.

This is the key moment. Bob's write simply overwrites Alice's. "And the same thing is about to happen with the music..."

The Interleaving (3/3): Nobody Got What They Wanted

Both calls to activateScene() returned true, but neither scene was correctly applied.

Our code has a race condition.

The scary part: Both methods return true. No exception. No crash. The room is silently in a mixed state — Study-mode lighting with Party-mode music. Alice and Bob each think their scene is active. Neither is correct.

Key question to ask: "How would you even know this happened? No error was thrown. The only way to discover it is to walk into the room."

Transition: This has a name...

You Can't Even Trust deviceCount++ (1/2)

deviceCount++ is three operations: read, add, write. Two threads registering devices simultaneously:

Both threads read 0. Both compute 1. What happens when they write?

Pause here. "Both threads read the same value — 0. Both independently add 1. What value does each one write?" Students will say "1." "And what should the final value be?" "2." "But both are about to write 1..."

You Can't Even Trust deviceCount++ (2/2)

Lost update: Thread A writes 1. Thread B writes 1 — overwrites A's result with the same stale computation. One increment is silently lost. If you can't trust deviceCount++, how do you trust anything?

This is the "aha" moment. Students think deviceCount++ is a single operation because it's a single line of code. It's not — the JVM compiles it into read, add, write. Two threads can interleave between any of those steps.

Expected result: 2 (two devices registered). Actual result: 1 (one registration lost). No error, no exception — just silently wrong.

Transition: And it gets worse...

Plant Example A

public class Plant implements Runnable {

  private static final int WATERING_INTERVAL_DAYS = 3;
  private Instant lastTimeWatered;
  private int numTimesWatered = 0;

  private int daysSinceWatered() {
    return (int) Duration.between(lastTimeWatered,
        Instant.now()).toDays();
  }

  private void waterPlant() {
    printThread("Watering plant.");
    numTimesWatered++;
    lastTimeWatered = Instant.now();
  }

  @Override
  public void run() {
    if (lastTimeWatered == null
        || daysSinceWatered() >= WATERING_INTERVAL_DAYS) {
      printThread("About to water plant.");
      waterPlant();
      printThread("numTimesWatered: " + numTimesWatered);
    } else {
      printThread("No need to water plant.");
    }
  }

  public static void main(String[] args) {
    Plant plant = new Plant();
    new Thread(plant).start(); // roommate 1
    new Thread(plant).start(); // roommate 2
  }
}

thread Thread-0: About to water plant.
thread Thread-1: About to water plant.
thread Thread-0: Watering plant
thread Thread-1: Watering plant
thread Thread-1: numTimesWatered: 2
thread Thread-0: numTimesWatered: 2

https://github.com/cs3100-spertus-s26/concurrency-examples/blob/plant-a/app/src/main/java/concurrency/Plant.java

This is the output I happened to get, not the only possible output.

Race Condition: Plant Watering

  private void waterPlant() {
    printThread("Watering plant.");
    numTimesWatered++;
    lastTimeWatered = Instant.now();
  }

  @Override
  public void run() {
    if (lastTimeWatered == null
        || daysSinceWatered() >= WATERING_INTERVAL_DAYS) {
      printThread("About to water plant.");
      waterPlant();
      printThread("numTimesWatered: " + numTimesWatered);
    } else {
      printThread("No need to water plant.");
    }
  }

Step	Thread-0	Thread-1	Plant object
1	lastTimeWatered == null? YES
2		lastTimeWatered == null? YES
3	About to water plant.
4		About to water plant.
5	Watering plant		numTimesWatered → 1
6		Watering plant	numTimesWatered → 2
7		numTimesWatered: 2
8	numTimesWatered: 2

How to Solve Plant Watering?

Two roommates have a whiteboard that shows when the plants were last watered.

At any time, a roommate can check if it's been more than X days since the plants were watered. If so,

• water the plant
• update the date on the whiteboard

This can lead to the plant getting watered twice on the same day.

How can this problem be fixed without direct communication? (Assume they're both invisible.)

If it helps, you can assume there is a Husky plush.

Think-Pair-Share

Synchronizing on a Shared Object

Have a rule that a roommate must follow this sequence:

1. Pick up the Husky plush.
2. Read the whiteboard.
3. Water the plants if needed.
4. Update the whiteboard.
5. Put down the Husky plush.

Steps 2-4 cannot be done unless holding the Husky plush.

Plant Example B

public class Plant implements Runnable {

  private static final int WATERING_INTERVAL_DAYS = 3;
  private Instant lastTimeWatered;
  private int numTimesWatered = 0;
  private final Object huskyPlush = new Object();  // NEW

  private int daysSinceWatered() { .. }

  private void waterPlant() {
    printThread("Watering plant.");
    numTimesWatered++;
    lastTimeWatered = Instant.now();
  }

  @Override
  public void run() {
    synchronized (huskyPlush) {                    // NEW
      if (lastTimeWatered == null
          || daysSinceWatered() >= WATERING_INTERVAL_DAYS) {
        printThread("About to water plant.");
        waterPlant();
        printThread("numTimesWatered: " + numTimesWatered);
      } else {
        printThread("No need to water plant.");
      }
    }
  }

  public static void main(String[] args) {
    Plant plant = new Plant();
    new Thread(plant).start(); // roommate 1
    new Thread(plant).start(); // roommate 2
  }
}

My output:

thread Thread-0: About to water plant.
thread Thread-0: Watering plant...
thread Thread-0: numTimesWatered: 1
thread Thread-1: Plant does not need watering.

The only other possible output:

thread Thread-1: About to water plant.
thread Thread-1: Watering plant...
thread Thread-1: numTimesWatered: 1
thread Thread-0: Plant does not need watering.

https://github.com/cs3100-spertus-s26/concurrency-examples/blob/plant-a/app/src/main/java/concurrency/Plant.java

Thread-1 could have run first.

Synchronization

Synchronizing on an object (such as huskyPlush means):

1. The current thread tries to grab the lock on the object.— If already locked, block the current thread.— Otherwise, grab the lock and proceed.
2. Hold the lock until the end of the synchronization block.
3. Release the lock.

This has two benefits:

1. mutual exclusion: only one thread can be in the block at a time.
2. visibility: writes made by one thread within the block are visible to the next thread that acquires the lock

Synchronization objects

We currently have this:

  @Override
  public void run() {
    synchronized (huskyPlush) { ... }
  }
}

Instead of creating a new object, we could synchronization on the instance (invoking object), the Plant we are calling run() on:

  @Override
  public void run() {
    synchronized (this) { ... }
  }

This can be stated more concisely:

  @Override
  public void synchronized run() {
    ...
  }

https://github.com/cs3100-spertus-s26/concurrency-examples/blob/plant-c/app/src/main/java/concurrency/Plant.java

Synchronization is hard

• Three broken examples

• Data structures that can help

What's Wrong With Plant Example D?

public class Plant implements Runnable {
  // unchanged code omitted

  private void waterPlant() {
    printThread("Watering plant.");
    numTimesWatered++;
    lastTimeWatered = Instant.now();
  }

  @Override
  public synchronized void run() {
    if (lastTimeWatered == null
        || daysSinceWatered() >= WATERING_INTERVAL_DAYS) {
      printThread("About to water plant.");
      waterPlant();
      printThread("numTimesWatered: " + numTimesWatered);
    } else {
      printThread("No need to water plant.");
    }
  }

  public static void main(String[] args) {
    Plant plant = new Plant();
    new Thread(plant).run(); // roommate 1
    new Thread(plant).run(); // roommate 2
  }
}

thread main: About to water plant.
thread main: Watering plant.
thread main: numTimesWatered: 1
thread main: No need to water plant.

https://github.com/cs3100-spertus-s26/concurrency-examples/blob/plant-d/app/src/main/java/concurrency/Plant.java

What's Wrong With Plant Example E?

public class Plant implements Runnable {
  // unchanged code omitted

  private void waterPlantIfNeeded() {
    if (lastTimeWatered == null
        || daysSinceWatered() >= WATERING_INTERVAL_DAYS) {
      printThread("About to water plant.");
      waterPlant();
      printThread("numTimesWatered: " + numTimesWatered);
    } else {
      printThread("No need to water plant.");
    }
  }

  @Override
  public synchronized void run() {
    waterPlantIfNeeded();
  }

  public static void main(String[] args) {
    Plant plant = new Plant();
    new Thread(plant).start();             // roommate 1
    new Thread(plant::waterPlantIfNeeded)  // roommate 2
        .start();
  }
}

thread Thread-0: About to water plant.
thread Thread-1: About to water plant.
thread Thread-0: Watering plant.
thread Thread-1: Watering plant.
thread Thread-0: numTimesWatered: 2
thread Thread-1: numTimesWatered: 2

The lock is useless if threads can enter the critical section another way.

https://github.com/cs3100-spertus-s26/concurrency-examples/blob/plant-e/app/src/main/java/concurrency/Plant.java

What's Wrong With Dining Example A?

public class DiningExample {
  private final Object fork = new Object();
  private final Object knife = new Object();

  public void roommate1() {
    synchronized (fork) {
      printThread("Roommate 1 picked up fork.");
      synchronized (knife) {
        printThread("Roommate 1 picked up knife. Eating!");
      }
    }
  }

  public void roommate2() {
    synchronized (knife) {
      printThread("Roommate 2 picked up knife.");
      synchronized (fork) {
        printThread("Roommate 2 picked up fork. Eating!");
      }
    }
  }

  public static void main(String[] args) {
    DiningExample d = new DiningExample();
    new Thread(d::roommate1).start();
    new Thread(d::roommate2).start();
  }
}

thread Thread-0: Roommate 1 picked up fork.
thread Thread-1: Roommate 2 picked up knife.

This is a deadlock: two threads each waiting for a lock held by the other.

https://github.com/cs3100-spertus-s26/concurrency-examples/blob/dining-a/app/src/main/java/concurrency/Dining.java

The fix: always acquire locks in the same order. If both roommates always pick up the fork before the knife, deadlock is impossible — one will always get the fork first and proceed.

Concurrent Data Structures

Java provides thread-safe data structures in java.util.concurrent that handle synchronization internally — no synchronized blocks needed.

Class	Replaces	Guarantee
AtomicInteger	int / Integer	Read-modify-write is atomic (e.g. incrementAndGet())
AtomicReference<T>	object reference	Atomic compare-and-swap on any object
ConcurrentHashMap<K,V>	HashMap	Safe concurrent reads and writes
CopyOnWriteArrayList<T>	ArrayList	Safe for many readers, few writers
BlockingQueue<T>	Queue	Thread-safe producer-consumer handoff

Prefer these over manual synchronized blocks — they are faster, less error-prone, and express intent clearly.

AtomicInteger is the most common fix for the numTimesWatered++ race condition — replace int with AtomicInteger and call incrementAndGet() instead of ++.

ConcurrentHashMap is what the SceneItAll hub uses internally for its device registry — it allows multiple threads to read and write without blocking each other unnecessarily.

BlockingQueue is the foundation of the producer-consumer pattern — one thread puts items in, another takes them out, and the queue handles the synchronization.

Concurrency Bugs Are the Hardest Bugs

Why they're hard:

• Timing-dependent — the bug only appears under specific interleavings
• Non-reproducible — run the same test twice, get different results
• Load-dependent — works fine with 5 devices, glitches with 50

The family's lights work fine with 5 devices. Add a 6th and scenes start glitching. Add a firmware update and the hub deadlocks. These bugs grow with scale.

Detection strategies:

1. Code review — look for shared mutable state accessed without synchronization
2. Static analysis — tools like SpotBugs detect common patterns
3. Stress testing — activate 10 scenes simultaneously, verify device states
4. Design — prefer immutable objects, concurrent collections, minimal shared state

"The best concurrency bug is the one you avoid by not sharing mutable state."

This is a mindset slide. The takeaway isn't "memorize these four strategies" — it's "concurrency bugs are qualitatively different from the bugs you've encountered so far."

Normal bugs are deterministic — same input, same output, every time. You can set a breakpoint and step through.

Concurrency bugs are nondeterministic — they depend on scheduling, CPU speed, cache behavior, load, and phase of the moon. Your test might pass 999 times and fail once. Adding a print statement changes the timing enough to make the bug disappear (a "Heisenbug").

The best defense is design: don't share mutable state in the first place. Use immutable records, concurrent collections, and message passing. When you must share state, use synchronization.

Transition: Key takeaways...

Poll: Share Something You Learned Today

Text espertus to 22333 if the
URL isn't working for you.

https://pollev.com/espertus

Open-ended poll

Key Takeaways

1. Threads enable concurrency — multiple paths of execution sharing the same heap. Use thread pools, not raw threads.
2. Shared mutable state is dangerous. Race conditions produce silently wrong results. deviceCount++ is not atomic.
3. synchronized provides atomicity + visibility. Mutual exclusion prevents interleaving. Memory visibility ensures threads see each other's writes.
4. Use concurrent collections — ConcurrentHashMap, AtomicInteger, BlockingQueue. The experts already debugged them.
5. Prevent deadlock with consistent lock ordering. Always acquire locks in the same order across all code paths.

Recap the arc: We started with the motivating problem (50 devices, 3 users, 1 hub). We learned how threads work (creating, pooling, interrupting). We saw what goes wrong (race conditions, lost updates, stale data). We fixed it (synchronized, concurrent collections). And we saw the new problem synchronization creates (deadlock).

Connection to GA1: Students won't write raw thread code in GA1 — they'll use BackgroundTaskRunner. But they need to understand what it does internally, and they need to recognize when shared state is being accessed concurrently.

Transition: What's coming next...

Looking Ahead

L32 (Wednesday): Asynchronous Programming

• Activating "Evening" means sending commands to 15 devices — each one a 200ms network call
• Threads are expensive for all that waiting
• CompletableFuture and allOf for fan-out patterns
• Platform.runLater() for updating your GA1 GUI from a background thread

Lab 12 runs Monday — GUI pair programming with Scene Builder

Your group project:

• GA1 (due Apr 9): BackgroundTaskRunner wraps the threading concepts from today
• Your TA will ask what happens under the hood — be ready to explain threads, shared state, and synchronization

Today: why shared state is dangerous and how locks protect it. Wednesday: how to avoid blocking threads entirely.

L32 preview: Today we learned that threads can run work concurrently. But sending 15 device commands means 15 threads sitting around waiting for Zigbee responses. Each thread costs memory. L32 introduces async programming — instead of blocking a thread waiting for a response, you register a callback and move on. CompletableFuture makes this composable.

Lab 12: Students build SceneItAll GUI components using Scene Builder and MVVM patterns from L29-30. This is pair programming — they'll practice binding, property listeners, and FXML layout.

GA1 connection: BackgroundTaskRunner.run(callable, onSuccess, onFailure) is the practical tool. Under the hood: it creates a javafx.concurrent.Task, runs it on a daemon thread, and uses Platform.runLater() to call onSuccess/onFailure on the FX thread. Students need to explain this during code walks.

That's it for today. Questions?

Bonus Slide
