CS 3100: Program Design and Implementation II

Lecture 16: Designing for Testability

Imposter Syndrome Reminder

Pie chart with blue, orange, and green regions.
The legends for the colors are 'People who get imposter syndrome',
'Other people who get imposter syndrome', and 'Literally everyone else
(they also get imposter syndrome)'. Text at the bottom reads:
'Everyone feels like an imposter sometimes, and that's okay.'
At the bottom right is 'errantscience.com'.

Poll: How has this course made you feel?

A. stupid

B. smart

C. challenged

D. scared

E. proud

F. overwhelmed

G. knowledgeable

H. humble

Learning Objectives

After this lecture, you will be able to:

Evaluate the testability of a software module using the concepts of observability and controllability
Explain Hexagonal Architecture (Ports and Adapters) and its relationship to testability
Describe properties of good test suites: fast, deterministic, independent, readable
Recognize anti-patterns that lead to untestable code and how to fix them

Testability is a Design Choice

Some systems are more testable than others. Imagine testing a feature that requires:

Setting up three different web services
Creating five files in specific directories
Putting a database in a specific state
Then verifying all of those were modified correctly

All of this is doable... but couldn't it be simpler?

Testability isn't luck—it's the result of design decisions.

Two Properties Determine Testability

Two pillars supporting 'Testability': Left pillar 'Observability' shows a scientist examining a transparent glass box with visible internal state. Right pillar 'Controllability' shows a conductor directing dependencies. Without both pillars, the roof collapses.

Observability: Can We See What Happened?

Observability is about how easily we can inspect the results of executing code.

public class TemperatureLogger {
    public void logReading(String zoneId, double temperature) {
        String timestamp = LocalDateTime.now().toString();
        String logEntry = String.format("[%s] Zone %s: %.1f°F",
            timestamp, zoneId, temperature);
        System.out.println(logEntry);  // Where does this go?
    }
}

❌ void return — nothing to assert on

❌ System.out.println — output disappears into the ether

⚠️ LocalDateTime.now() — timestamp changes every run (controllability!)

Improving Observability and Controllability

public class TemperatureLogger {
  private final List<String> logEntries = new ArrayList<>();  // ① Store results
  private final Clock clock;  // ② Inject dependency

  public TemperatureLogger(Clock clock) {
    this.clock = clock;
  }

  public void logReading(String zoneId, double temperature) {
    String timestamp = Instant.now(clock).toString();  // ③ Use injected clock
    String logEntry = String.format("[%s] Zone %s: %.1f°F",
        timestamp, zoneId, temperature);
    logEntries.add(logEntry);
  }

  public List<String> getLogEntries() {  // ④ Expose for inspection
    return Collections.unmodifiableList(logEntries);
  }
}

✓ ① Store entries in a list — we can inspect them later (observability)

✓ ②③ Inject Clock — tests pass Clock.fixed(...) (controllability)

✓ ④ getLogEntries() — tests can assert on what was logged (observability)

Poll: Which change would MOST improve the testability of this method?

public void processOrder(Order order) {
    double tax = order.getTotal() * 0.08;
    order.setTax(tax);
    database.save(order);
}

A. Make it private

B. Make database a parameter

C. Split it into multiple methods

D. Add a getTax() method to Order

One Possible Rewrite for Testability

protected double calculateTax(double amount) {
    return amount * .08;
}

protected void addTaxToOrder(Order order) {
    order.setTax(calculateTax(order.getTotal()));
}

protected void processOrder(Order order, Database db) {
    addTaxToOrder(order);
    db.save(order); // save to parameter db
}

public void processOrder(Order order) {
    processOrder(order, database); // pass instance variable
}

Controllability: Can We Set Up the Test Scenario?

Controllability is about how easily we can put the system into a specific state for testing.

Low Controllability ❌

public double getCurrentPrice() {
  // Creates its own client!
  HttpClient client =
      HttpClient.newHttpClient();
  // Can't substitute test version
}

public boolean isOffPeakHours() {
  // Uses system clock!
  int hour = LocalTime.now()
                     .getHour();
  // Can't test 3 AM at 2 PM
}

High Controllability ✓

private final EnergyPriceApi api;
private final Clock clock;

public EnergyPriceService(
  EnergyPriceApi api, Clock clock) {
  this.api = api;
  this.clock = clock;
}

public double getCurrentPrice() {
  return api.fetchCurrentPrice();
}

public boolean isOffPeakHours() {
  int hour = LocalTime.now(clock)
                     .getHour();
  return hour >= 22 || hour < 6;
}

Observability: Return Values vs Side Effects

Consider testing a device health checker. How do we observe what happened?

public class DeviceHealthChecker {
    private final DeviceRepository repo;

    public void checkDevice1(IoTDevice device) {
        HealthStatus status = assessHealth(device);
        device.setHealthStatus(status);  // Mutates input!
        repo.save(device);               // Side effect!
    }

    public HealthReport checkDevice2(IoTDevice device) {
        HealthStatus status = assessHealth(device);
        return new HealthReport(device.getId(), status);
    }
}

The second version is easier to test: call the method, check the return value.
There's no need to inspect mutated objects or mock repositories.

Separating Infrastructure from Domain

The most important principle for testability: separate infrastructure from domain code.

Domain Code

Business rules and calculations
Decisions that define what your system does
Pure functions, no side effects
Easy to test

Infrastructure Code

Databases, APIs, file systems
Hardware, network, external services
I/O, persistence, communication
Requires test doubles

When these are mixed together, testing becomes painful because you can't exercise business logic without involving infrastructure.

Poll: What makes this method hard to test?

public boolean shouldSendAlert(String deviceId) {
  double temp = new TemperatureSensor().readTemperature(deviceId);
  LocalTime now = LocalTime.now();
  return temp > 100.0 && now.getHour() >= 8 && now.getHour() <= 22;
}

A. Its return type is a primitive

B. It creates its dependencies internally

C. It tests multiple conditions

D. It has side effects

Mind the Gap (Revisited from L12)

Pixel art split-screen: TOP shows small gap with sturdy bridge between domain and implementation. BOTTOM shows huge gap with technical debris everywhere. Tagline: Mind the Gap.

In L12, we talked about keeping implementation close to the domain model.

The same principle applies to testability: the more infrastructure pollutes your domain, the harder testing becomes.

Mixed Concerns Make Testing Painful

public class EnergyOptimizer {
    private static final double LOW_PRICE_THRESHOLD = 0.10;

    public void optimizeForPrice(String thermostatId) {
        // Infrastructure: API call to get price
        HttpClient client = HttpClient.newHttpClient();
        HttpRequest priceRequest = HttpRequest.newBuilder()
            .uri(URI.create("https://api.gridprices.com/current"))
            .header("Authorization", "Bearer " + System.getenv("API_KEY"))
            .build();
        HttpResponse<String> response =
            client.send(priceRequest, HttpResponse.BodyHandlers.ofString());
        double currentPrice = Double.parseDouble(response.body());

        // Domain: business logic (buried in the middle!)
        int powerLevel = currentPrice < LOW_PRICE_THRESHOLD ? 100 : 50;

        // Infrastructure: Zigbee protocol command
        ZigbeeGateway gateway = new ZigbeeGateway("192.168.1.100");
        gateway.connect();
        gateway.sendCommand(thermostatId, "SET_POWER", powerLevel);
        gateway.disconnect();
    }
}

Hexagonal Architecture (Ports and Adapters)

The solution is called Hexagonal Architecture, proposed by Alistair Cockburn (2005)

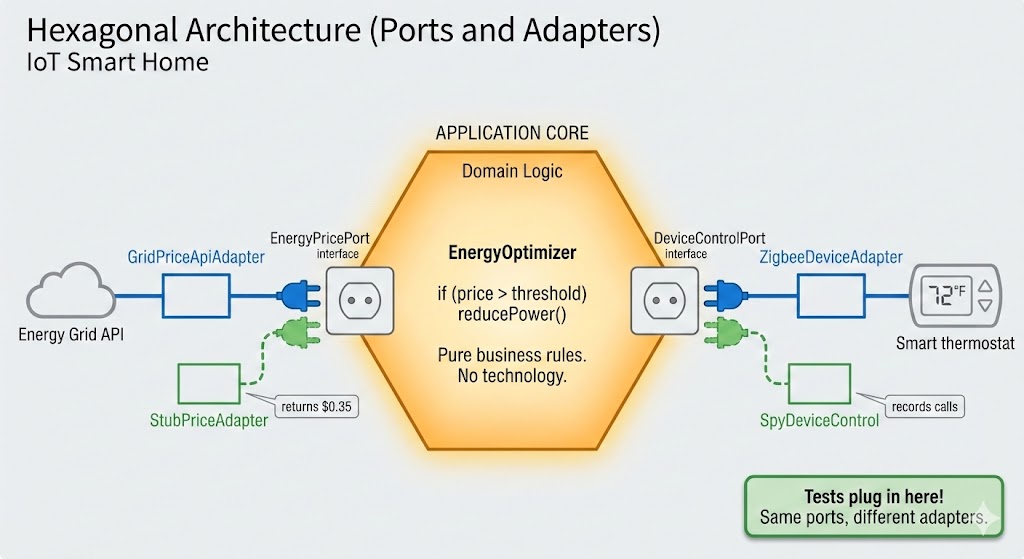

Hexagonal Architecture diagram for an IoT Smart Home. A central golden hexagon labeled 'Application Core / Domain Logic' contains 'EnergyOptimizer' with the rule 'if (price > threshold) reducePower()' and the caption 'Pure business rules. No technology.' Two ports sit on the hexagon's edges as electrical outlet sockets. On the left, EnergyPricePort has two adapters plugged in: GridPriceApiAdapter (blue, connecting to an Energy Grid API cloud) and StubPriceAdapter (green, labeled 'returns $0.35'). On the right, DeviceControlPort has ZigbeeDeviceAdapter (blue, connecting to a smart thermostat) and SpyDeviceControlAdapter (green, labeled 'records calls'). A callout reads 'Tests plug in here! Same ports, different adapters.' Blue adapters represent production; green adapters represent test doubles.

Why "Hexagonal"?

The hexagon shape emphasizes a key idea: there's no "top" or "bottom".

The insight:

Your business logic sits in the center
Everything else (databases, APIs, hardware, UI) is outside
Each external thing connects through a "port"
The direction is always inward (toward domain) and outward (toward infrastructure)

Tests are just another "outside" thing! They plug in through the same ports as real infrastructure.

The Three Layers: Core

Core: Knows nothing about databases, APIs, or hardware—only the domain.

Ports: Interfaces that describe what the domain needs, not how to get it.

Adapters: Implementations of the interfaces to talk to specific technologies

The Three Layers: Ports

Core: Knows nothing about databases, APIs, or hardware—only the domain.

Ports: Interfaces that describe what the domain needs, not how to get it.

Adapters: Implementations of the interfaces to talk to specific technologies

The Three Layers: Adapters

Core: Knows nothing about databases, APIs, or hardware—only the domain.

Ports: Interfaces that describe what the domain needs, not how to get it.

Adapters: Implementations of the interfaces to talk to specific technologies

Ports Define What the Domain Needs

Ports are interfaces defined by the domain, describing what it needs from the outside world.

// Port: How we get current energy price (single method = can use lambda in tests!)
public interface EnergyPricePort {
    double getCurrentPricePerKWh();
}

// Port: How we control a device's power level
public interface DeviceControlPort {
    void setDevicePower(String deviceId, int powerPercent);
}

Note: Functional interfaces can be implemented with lambdas in tests.

The Domain Uses Ports (Abstractions), Not Technologies (Concretions)

public class EnergyOptimizer {
  private static final double LOW_PRICE_THRESHOLD = 0.10;
  private final EnergyPricePort priceService;
  private final DeviceControlPort deviceControl;

  public EnergyOptimizer(EnergyPricePort priceService,
                         DeviceControlPort deviceControl) {
    this.priceService = priceService;
    this.deviceControl = deviceControl;
  }

  public void optimizeForPrice(String thermostatId) {
    double currentPrice = priceService.getCurrentPricePerKWh();
    if (currentPrice < LOW_PRICE_THRESHOLD) {
      // Energy is cheap — pre-heat the home
      deviceControl.setDevicePower(thermostatId, 100);
    } else {
      deviceControl.setDevicePower(thermostatId, 50);
    }
  }
}

✓ No HttpClient, no Connection, no DataSource—only interfaces.

Adapters Connect to Real Infrastructure

// Adapter: Gets prices from a real API
public class GridPriceApiAdapter
    implements EnergyPricePort {

  private final HttpClient httpClient;
  private final String apiKey;

  @Override
  public double getCurrentPricePerKWh() {
    HttpRequest request = HttpRequest.newBuilder()
      .uri(URI.create(
        "https://api.gridprices.com/current"))
      .header("Authorization",
        "Bearer " + apiKey)
      .build();
    // ... parse response and return price
  }
}

Adapters know the technology and implement the ports to meet the domain's needs.

Testing with Hexagonal Architecture

@Test
void runsThermostatAtFullPowerWhenPriceIsLow() {
  // Implement the functional interface with a lambda.
  EnergyPricePort stubPrices = () -> 0.05;

  // Implement DeviceControlPort.
  SpyDeviceControlAdapter spyDevices =
    new SpyDeviceControlAdapter();

  // EnergyOptimizer is the class under test.
  EnergyOptimizer optimizer =
    new EnergyOptimizer(stubPrices, spyDevices);

  // This is the method under test.
  optimizer.optimizeForPrice("thermostat-1");

  // Make sure the power level was set correctly.
  assertEquals(100,
    spyDevices.getPowerLevel("thermostat-1"));
}

Ports as a Design Technique

When developing with Hexagonal Architecture, let ports emerge from the domain.

Start with the business logic you're trying to implement
When you notice it needs something from the outside world, define an interface
The interface describes what you need, not how to get it
Implement adapters later (or use test doubles)

This approach keeps you focused on the business problem without getting distracted by infrastructure details.

Hexagonal Architecture Minimizes Coupling

Remember the coupling types from L7? Hexagonal Architecture addresses each one:

Coupling Type	How Hexagonal Architecture Addresses It
Data	Ports pass only the data needed—`getCurrentPricePerKWh()` returns a `double`, not `HttpResponse`
Stamp	Domain types (`EnergyPreferences`) are defined by the domain, not dictated by external APIs
Control	Adapters don't pass flags that control domain logic
Common	No shared global state between domain and infrastructure
Content	Impossible—adapters can't access domain internals

Hexagonal Architecture = Modularity at Scale

This is the same modularity principle from L6 applied at the system level:

L6 Principle	Hexagonal Application
Modules have well-defined interfaces	Ports are interfaces defined by domain
Implementation is hidden	Adapters hide technology details
Modules don't depend on other modules' internals	Domain doesn't know about adapters

Low coupling and high cohesion don't just make code easier to change—they make it easier to test.

Testability Aligns with Good Design

Testability isn't a separate concern—it's a natural consequence of following the principles from L6-L8:

Design Principle	Testability Benefit
Low Coupling (L7)	Dependencies can be substituted with test doubles
High Cohesion (L7)	Each class has a clear purpose → focused tests
Information Hiding (L6)	Implementation changes don't break tests
Dependency Inversion (L8)	Inject test doubles instead of real dependencies
Single Responsibility (L8)	Fewer behaviors to test per class
Interface Segregation (L8)	Smaller interfaces → simpler test doubles

If your code is hard to test, it probably violates one of these principles.

Testability Can Be in Tension with Other Goals

Designing for testability sometimes involves tradeoffs:

Goal	Tension with Testability
Simplicity	Testability may require more interfaces, abstractions, and indirection
Encapsulation	Observability sometimes requires exposing internal state
Performance	Dependency injection adds indirection
Reduced Boilerplate	Constructor injection requires more code than `new`

These tensions are usually worth it for non-trivial systems, but not every class needs hexagonal architecture!

When to Invest in Testability

Not all code needs the same level of testability investment:

High Investment

Complex business rules
Code with many edge cases
Integration points with external systems
Code that changes frequently
Code where bugs are expensive

Low Investment

Simple data transfer objects
Straightforward delegation
Configuration and wiring code
Stable, well-tested libraries
Code that rarely changes

Apply hexagonal architecture where it provides value. Don't over-abstract simple code.

Complexity

Properties of Good Test Suites

Property	What It Means	How Hexagonal Enables It
Fast	Tests run in milliseconds	Domain tests have no I/O
Deterministic	Same result every time	Injectable `Clock`, `Random`, etc.
Independent	Tests don't affect each other	No shared infrastructure state
Readable	Tests document behavior	Given/When/Then structure

If tests take 30 minutes, developers won't run them often.
If tests take 30 seconds, they'll run them after every change.

Readable Tests Tell a Story

@Test
void reducesNonEssentialDevices_whenEnergyPriceExceedsThreshold() {
    // Given: energy price is high and user has set a threshold
    priceService.setCurrentPrice(0.35);  // Stub returns high price
    preferences.setHighPriceThreshold(0.25);
    devices.addDevice(new Device("living-room-light", false)); // non-essential
    devices.addDevice(new Device("refrigerator", true)); // essential

    // When: the optimizer runs
    optimizer.optimizeForPrice("home-123");

    // Then: only non-essential devices are reduced
    assertEquals(50, devices.getPowerLevel("living-room-light"));
    assertEquals(100, devices.getPowerLevel("refrigerator"));  // unchanged
}

The test reads like a specification. No HTTP setup, no database seeds—just the business scenario.

Anti-Patterns That Kill Testability

Static methods — Can't be substituted with test doubles
Singletons — Global state that leaks between tests
Private methods wanting tests — Sign the class is doing too much
Complex boolean conditions — Require exponential test cases

Common thread: All violate Dependency Inversion or Single Responsibility.

Anti-Pattern: Static Methods

Static methods are globally accessible, which means you can't substitute test implementations.

Hard to test

public class ScheduledTask {
  public void runIfDue() {
    // Static call - can't stub!
    if (TimeUtils.isBusinessHours()) {
      doWork();
    }
  }
}

We can wrap the method isBusinessHours() in a class...

Testable

public class ScheduledTask {
  private final BusinessHoursChecker
      hoursChecker;

  public ScheduledTask(
      BusinessHoursChecker hoursChecker) {
    this.hoursChecker = hoursChecker;
  }

  public void runIfDue() {
    if (hoursChecker.isBusinessHours()) {
      doWork();
    }
  }
}

The Singleton Pattern

Singleton ensures only one instance of a class exists, accessed through a static method.

public class DatabaseConnection {
  private static DatabaseConnection instance;

  private DatabaseConnection() {
    // private constructor — no one else can create one
  }

  public static DatabaseConnection getInstance() {
    if (instance == null) {
      instance = new DatabaseConnection();
    }
    return instance;
  }

  public Result query(String sql) { /* ... */ }
}

This is good for efficiency but bad for safety.

Why Singletons Hurt Testing

public class UserService {
  public User findUser(String id) {
    // Can't substitute this for tests!
    return DatabaseConnection.getInstance()
      .query("SELECT ...");
  }
}

⚠ Same static call problem — you can't swap in a test double.

But singletons add another issue: shared mutable state. One test's data leaks into the next.

Anti-Pattern: Private Methods Needing Testing

If you feel the urge to test a private method directly, consider putting it in its own class.

Hard to test

public class DeviceHealthChecker {
  public HealthReport checkAll(
      List<IoTDevice> devices) {
    HealthReport report = new HealthReport();
    for (IoTDevice device : devices) {
      report.add(device.getId(),
        assessHealth(device));
    }
    return report;
  }

  private HealthStatus assessHealth(
    IoTDevice device) {
    // complex logic to test
  }
}

Testable

// Extracted to its own class
public class DeviceHealthAssessor {
  public HealthStatus assess(
      double batteryPercent,
      int signalStrength,
      long minutesSinceContact) {
    if (minutesSinceContact > 60)
      return HealthStatus.OFFLINE;
    if (batteryPercent < 10)
      return HealthStatus.CRITICAL;
    if (batteryPercent < 25 ||
        signalStrength < 20)
      return HealthStatus.WARNING;
    return HealthStatus.HEALTHY;
  }
}

Connection to SRP (L8): DeviceHealthChecker was doing two things. Health assessment deserves its own class.

Not an Anti-Pattern: Integration Points

Some classes coordinate multiple components. This isn't an anti-pattern—it's an integration point.

// This class coordinates the home automation workflow
public class HomeAutomationController {
    public HomeAutomationController(
        SensorNetwork sensors,
        DeviceController devices,
        EnergyPriceService pricing,
        WeatherService weather,
        NotificationService notifier) { ... }

    public void optimizeHome(String homeId) {
        // Orchestrates all the components
    }
}

You can still mock the dependencies—but verify coordination behavior, not just "was this method called?"

Many dependencies ≠ bad design. Coordination is this class's job.

Anti-Pattern: Complex Boolean Conditions

Complex conditions require many test cases to cover all branches.

Hard to test

// How many tests to cover this?
if ((device.isOnline() &&
     device.batteryLevel() > 20) ||
    (device.isPowered() &&
     !device.isInSleepMode()) ||
    (device.isEssential() &&
     emergencyMode)) {
    // ...
}

Testable

private boolean canReceiveCommands(
    IoTDevice device) {
  return hasSufficientBattery(device)
      || hasReliablePower(device)
      || isRequiredInEmergency(device);
}

private boolean hasSufficientBattery(
        IoTDevice device) {
  return device.isOnline() &&
         device.batteryLevel() > 20;
}

Breaking conditions into named methods spreads out the complexity, increasing testability and readability.

Anti-Pattern Summary

Anti-Pattern	Problem	Solution
Static methods	Can't substitute	Wrap in injectable interface
Singletons	Global state, can't replace	Inject dependency instead
Private methods wanting tests	Class doing too much	Extract to own class
Complex booleans	Too many branches	Extract named predicates

Summary

Testability is a design choice—not an afterthought
Observability = can we see what happened? (return values, accessible state)
Controllability = can we set up the scenario? (dependency injection)
Hexagonal Architecture separates domain logic from infrastructure
Ports are interfaces defined by domain; Adapters implement them
Good tests are fast, deterministic, independent, and readable
Avoid static methods, singletons, hidden dependencies, tight coupling

The same principles that make code easy to change make it easy to test.

Bonus Slide

Tweet from brombo reading: 'This is what every diagram in my software design class looks like'.
Top part of diagram, labeled 'problem': Rectangles named 'thing 1' and 'thing 2' with lots of squiggly arrows between them.
Bottom part of diagram, labeled 'solution': Same rectangles with neat arrows to and from a new rectangle named 'thing in the middle'.

Lecture 16: Designing for Testability​

Imposter Syndrome Reminder​

Poll: How has this course made you feel?​

Learning Objectives​

Testability is a Design Choice​

Two Properties Determine Testability​

Observability: Can We See What Happened?​

Improving Observability and Controllability​

Poll: Which change would MOST improve the testability of this method?​

One Possible Rewrite for Testability​

Controllability: Can We Set Up the Test Scenario?​

Observability: Return Values vs Side Effects​

Separating Infrastructure from Domain​

Poll: What makes this method hard to test?​

Mind the Gap (Revisited from L12)​

Mixed Concerns Make Testing Painful​

Hexagonal Architecture (Ports and Adapters)​

Why "Hexagonal"?​

The Three Layers: Core​

The Three Layers: Ports​

The Three Layers: Adapters​

Ports Define What the Domain Needs​

The Domain Uses Ports (Abstractions), Not Technologies (Concretions)​

Adapters Connect to Real Infrastructure​

Testing with Hexagonal Architecture​

Ports as a Design Technique​

Hexagonal Architecture Minimizes Coupling​

Hexagonal Architecture = Modularity at Scale​

Testability Aligns with Good Design​

Testability Can Be in Tension with Other Goals​

When to Invest in Testability​

Complexity​

Properties of Good Test Suites​

Readable Tests Tell a Story​

Anti-Patterns That Kill Testability​

Anti-Pattern: Static Methods​

The Singleton Pattern​

Why Singletons Hurt Testing​

Anti-Pattern: Private Methods Needing Testing​

Not an Anti-Pattern: Integration Points​

Anti-Pattern: Complex Boolean Conditions​

Anti-Pattern Summary​

Summary​

Bonus Slide​

Lecture 16: Designing for Testability

Imposter Syndrome Reminder

Poll: How has this course made you feel?

Learning Objectives

Testability is a Design Choice

Two Properties Determine Testability

Observability: Can We See What Happened?

Improving Observability and Controllability

Poll: Which change would MOST improve the testability of this method?

One Possible Rewrite for Testability

Controllability: Can We Set Up the Test Scenario?

Observability: Return Values vs Side Effects

Separating Infrastructure from Domain

Poll: What makes this method hard to test?

Mind the Gap (Revisited from L12)

Mixed Concerns Make Testing Painful

Hexagonal Architecture (Ports and Adapters)

Why "Hexagonal"?

The Three Layers: Core

The Three Layers: Ports

The Three Layers: Adapters

Ports Define What the Domain Needs

The Domain Uses Ports (Abstractions), Not Technologies (Concretions)

Adapters Connect to Real Infrastructure

Testing with Hexagonal Architecture

Ports as a Design Technique

Hexagonal Architecture Minimizes Coupling

Hexagonal Architecture = Modularity at Scale

Testability Aligns with Good Design

Testability Can Be in Tension with Other Goals

When to Invest in Testability

Complexity

Properties of Good Test Suites

Readable Tests Tell a Story

Anti-Patterns That Kill Testability

Anti-Pattern: Static Methods

The Singleton Pattern

Why Singletons Hurt Testing

Anti-Pattern: Private Methods Needing Testing

Not an Anti-Pattern: Integration Points

Anti-Pattern: Complex Boolean Conditions

Anti-Pattern Summary

Summary

Bonus Slide
